What Actually Happens in coalesce()🔗

coalesce(n) is a narrow transformation, but that does not mean zero data movement.

It means:

  • No full shuffle across all partitions
  • But some data may still be reassigned/moved

How Coalesce Reduces Partitions🔗

Spark:

  1. Selects a subset of existing partitions as targets
  2. Maps multiple old partitions → fewer new partitions
  3. Avoids re-hashing / global redistribution

Example🔗

Before (4 partitions across executors)🔗

Executor 1 → P1 [A, B]
Executor 2 → P2 [C, D]
Executor 3 → P3 [E, F]
Executor 4 → P4 [G, H]

After coalesce(2)🔗

Possible mapping:

New Partition 1 ← P1 + P2
New Partition 2 ← P3 + P4

Does Data Move?🔗

Case 1: Ideal (Same Executor)🔗

If:

  • P1 and P2 are already on same executor

Then:

  • Minimal or no data movement

Case 2: Different Executors🔗

If:

  • P1 is on Executor 1
  • P2 is on Executor 2

Then:

  • One partition’s data must move to the other executor

Key Insight🔗

coalesce() avoids global shuffle, but does not guarantee data locality

  • It does not rebalance data evenly
  • It just collapses partitions with minimal coordination

Why It’s Still Faster Than repartition()🔗

coalesce()🔗

  • Moves only necessary partitions
  • No re-hashing
  • No all-to-all communication

repartition()🔗

  • Every partition sends data to every other partition
  • Full network shuffle

Internal Behavior (Important)🔗

  • Uses a Partition Coalescer
  • Groups partitions into fewer buckets

  • Tries to:

  • Prefer data locality

  • Minimize cross-node transfer

But:

  • No strict guarantee

Visual Comparison🔗

coalesce(2)🔗

P1 ┐
P2 ┘ → New P1

P3 ┐
P4 ┘ → New P2

(Limited movement)

repartition(2)🔗

P1 ─┬─→ P1'
P2 ─┼─→ P1'
P3 ─┼─→ P1'
P4 ─┘

P1 ─┬─→ P2'
P2 ─┼─→ P2'
P3 ─┼─→ P2'
P4 ─┘

(All-to-all shuffle)

Final Answer🔗

coalesce() does not strictly merge partitions within the same executor. It may move data across executors, but only as needed, avoiding a full shuffle and minimizing network I/O.

Interview One-Liner🔗

coalesce() minimizes data movement but does not eliminate it; it can move data across executors, just without triggering a full shuffle like repartition().

Here’s a real-world case study that clearly shows how coalesce() behaves (including data movement) and why it’s chosen over repartition() in practice.

Case Study: Databricks ETL Pipeline (Event Logs → Delta Lake)🔗

Scenario🔗

You’re a Data Engineer processing clickstream / event data:

  • Source: Kafka → Bronze table (raw JSON)
  • Processing: Spark (Databricks)
  • Output: Delta table in S3 / ADLS
  • Volume: ~500 GB/day
  • Initial partitions: 2000 partitions

Step 1: Raw Data Load🔗

After ingestion:

df = spark.read.table("bronze_events")
print(df.rdd.getNumPartitions())  # 2000

Why so many partitions?

  • Auto Loader / Kafka ingestion
  • Small micro-batches
  • High parallelism

Step 2: Transform + Filter🔗

df_filtered = df.filter("event_type = 'purchase'")

Now:

  • Data volume drops to ~50 GB
  • But partitions are still 2000

Problem🔗

If you write directly:

df_filtered.write.format("delta").save("/silver/purchases")

You get:

  • 2000 small files
  • Poor query performance
  • Metadata overhead
  • Slow downstream reads

Step 3: Optimize with coalesce()🔗

df_filtered = df_filtered.coalesce(100)

What Actually Happens Internally🔗

Before🔗

2000 partitions (~25 MB each after filter)
Spread across many executors

Coalesce Mapping (Example)🔗

New Partition 1  ← P1 + P2 + ... + P20
New Partition 2  ← P21 + ... + P40
...
New Partition 100 ← ...

Important: Does Data Move?🔗

Yes — but selectively🔗

Case A: Same Executor🔗

If P1–P20 are on same executor:

  • No network movement
  • Just merged locally

Case B: Different Executors🔗

If partitions are spread:

  • Some partitions must move across executors

  • But:

  • No full shuffle

  • No all-to-all exchange

Why Not Use repartition(100)?🔗

df_filtered.repartition(100)

This would:

  • Trigger full shuffle
  • Every partition sends data everywhere
  • Massive network I/O for 50 GB

Performance Comparison (Realistic)🔗

Operation Shuffle Time Network
No change (2000 files) None Fast write, slow reads Low
coalesce(100) Minimal Fast Low
repartition(100) Full Slow High

Step 4: Write Optimized Output🔗

df_filtered.write.format("delta").mode("overwrite").save("/silver/purchases")

Result:

  • ~100 files (~500 MB each)

  • Much better for:

  • Query performance

  • File pruning
  • Metadata handling

Where This Matters in Real Systems🔗

1. Delta Lake Optimization🔗

In platforms like Databricks:

  • Small file problem is very common
  • coalesce() is frequently used before writes

2. Daily Batch Pipelines🔗

Typical pattern:

df = transform(df)
df = df.coalesce(target_partitions)
df.write(...)

3. Cost Optimization🔗

  • Less shuffle → less compute time
  • Less network → lower cloud cost
  • Fewer files → faster queries

When This Strategy Fails🔗

Skewed Data Example🔗

If:

Partition 1 → 10 GB
Others → 10 MB

Then:

  • coalesce() may create uneven partitions
  • One task becomes a bottleneck

In such cases:

df.repartition(100)

is better

Key Takeaways🔗

1. coalesce() in real life🔗

  • Used to reduce output files
  • Common before writes

2. Data Movement Reality🔗

It can move data across executors, but avoids full shuffle

3. Why Engineers Prefer It🔗

  • Faster than repartition
  • Good enough distribution for writes
  • Minimizes shuffle cost

Let’s build a clean, first-principles understanding of skew, partitions, tasks, and how Spark actually executes work—the way you should think about it in interviews and real systems.

1. Fundamental Building Blocks🔗

Partition🔗

  • A logical chunk of data
  • Smallest unit Spark can process independently

Task🔗

  • A unit of computation on one partition

1 partition → 1 task

Executor🔗

  • A JVM process with CPU + memory
  • Runs multiple tasks (based on available cores)

2. How Spark Actually Executes a Job🔗

Suppose you have:

100 partitions
5 executors
Each executor = 4 cores

Total parallel capacity:🔗

5 executors × 4 cores = 20 tasks at a time

Execution:🔗

  • Spark launches 20 tasks in parallel
  • Remaining tasks wait in queue

3. Where Skew Comes From🔗

Ideal Case (Balanced)🔗

Partition sizes:
[100MB, 100MB, 100MB, 100MB]

All tasks:

  • Start together
  • Finish roughly together

Cluster utilization = high

Skewed Case (Problem)🔗

Partition sizes:
[10MB, 10MB, 10MB, 500MB]

Execution:

Task 1 → 10MB → finishes fast
Task 2 → 10MB → finishes
Task 3 → 10MB → finishes
Task 4 → 500MB → runs long

Now:

  • 3 executors become idle
  • Only 1 executor is busy

This is called a straggler task

4. Why Spark Cannot Fix This Automatically🔗

Because:

  • Each partition is independent
  • A task cannot be split across executors
  • Spark cannot “steal” work from a running task

So one big partition = one long-running task

5. Where Skew Happens Most Often🔗

5.1 Joins (Most common)🔗

df1.join(df2, "user_id")

Spark:

  • Shuffles data by user_id
  • Same keys go to same partition

Problem:🔗

user_id = 1 → 1 million rows
user_id = others → few rows

→ One partition becomes huge

5.2 Aggregations🔗

groupBy("country")

If:

India → 90% data
Others → 10%

→ One partition gets overloaded

5.3 Repartition by key🔗

repartition("product_id")

Same issue if key distribution is uneven

6. How Shuffle Creates Skew🔗

During shuffle:

  1. Data is redistributed based on key
  2. Hash function assigns key → partition
partition_id = hash(key) % num_partitions

If one key is frequent:

→ That partition gets most of the data

7. Diagnosing Skew🔗

In Spark UI:

  • One task takes much longer than others

  • Large difference in:

  • Input size

  • Shuffle read size
  • Duration

This is a clear sign of skew

8. Solutions (Deep Understanding)🔗

8.1 Repartition (General balancing)🔗

df.repartition(200)
  • Full shuffle
  • Redistributes rows more evenly

But:

  • Does NOT fix skew caused by a single heavy key

8.2 Salting (Best for key skew)🔗

Idea:

Break one heavy key into multiple smaller keys

Example:🔗

Instead of:

user_id = 1

Make:

user_id = 1_0, 1_1, 1_2, ..., 1_9

Code:

from pyspark.sql.functions import col, rand

df = df.withColumn("salt", (rand()*10).cast("int"))
df = df.withColumn("user_id_salted", concat(col("user_id"), col("salt")))

Now:

  • Data spreads across partitions
  • No single partition is overloaded

8.3 Broadcast Join (Best when one table is small)🔗

from pyspark.sql.functions import broadcast

df_large.join(broadcast(df_small), "id")
  • No shuffle on large dataset
  • Eliminates skew entirely

8.4 Skew Join Optimization (Spark 3+)🔗

Spark can automatically:

  • Detect skewed partitions
  • Split large partitions

Config:

spark.conf.set("spark.sql.adaptive.enabled", "true")
spark.conf.set("spark.sql.adaptive.skewJoin.enabled", "true")

8.5 Coalesce (Not for skew)🔗

df.coalesce(10)
  • Reduces partitions
  • No full shuffle
  • Does NOT rebalance data

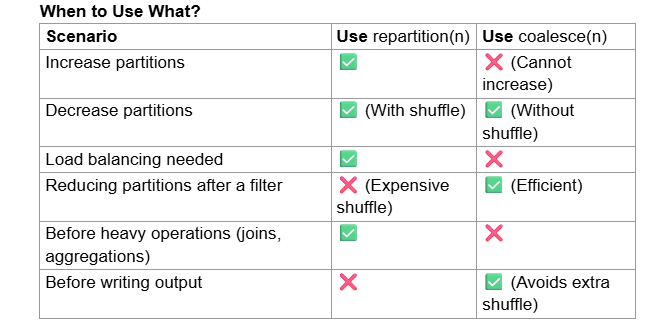

9. Repartition vs Coalesce (Final Clarity)🔗

Feature Repartition Coalesce
Shuffle Yes No (mostly)
Balancing Yes No
Increase partitions Yes No
Decrease partitions Yes Yes
Fix skew Partial No

10. Final Mental Model🔗

Think like this:

  • Spark = parallel system
  • Parallelism depends on number of partitions
  • Efficiency depends on balanced partitions

The goal is not just “more partitions” but evenly sized partitions

11. One-Line Summary🔗

Skew occurs when one or few partitions contain disproportionately large data, causing long-running tasks (stragglers) and underutilized executors, and it must be handled using techniques like repartitioning, salting, broadcast joins, or adaptive execution.

alt text

Example Use Cases

Repartition for Large Joins:

df.repartition(100).join(other_df.repartition(100), "id")

Ensures both datasets have balanced partitions before joining. Coalesce Before Writing to Disk:

df.filter(col("status") == "active").coalesce(1).write.parquet("output/")

Reduces shuffle and writes fewer output files.

Repartitioning by column name🔗

When you use .repartition(column_name), Spark redistributes the data based on the values in the specified column. This helps when working with data that needs to be grouped by a specific column before performing operations like joins or aggregations.

Syntax:

df.repartition("category") # Redistributes based on 'category' column
  • This will shuffle data so that all rows with the same category value end up in the same partition.
  • The number of partitions will be decided by Spark's default settings (typically based on cluster size and data volume).

Repartition with Both Column & Number of Partitions

You can also specify both a column name and a number of partitions: df.repartition(10, "category") # Redistributes by 'category' into 10 partitions

Spark will first hash partition the data based on category values. Then, it will further distribute the data into 10 partitions.

This ensures a controlled number of partitions while still grouping data by column.
